High Strength Earth Reinforcement Welded Geocell 200mm Height HDPE ESCR OIT Green

Large Image : High Strength Earth Reinforcement Welded Geocell 200mm Height HDPE ESCR OIT Green

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	GeoMax
Certification:	ISO9001-2015
Model Number:	GM 200-445

Payment & Shipping Terms:

Minimum Order Quantity:	3600 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

High Strength Earth Reinforcement Welded Geocell 200mm Height HDPE ESCR OIT Green

Description

Material:	High Density Polyethylene	Thickness:	1.2mm-1.5mm
Geocell Standard:	ASTM Or GB Standard	HDPE Geocell Height:	200mm
Surface:	Textured& Perforated	Welded Distance:	445mm
HDPE Geocell Density:	0.950 G/cm3	Geocell Carbon Black:	1.5%
HDPE Geocell Peeling Strength:	10-14.2kN/m	HDPE Geocell Tensile Strength:	25kN/m
HDPE Geocell Our Minimum Quantity:	3600m2	ESCR:	4999 Hours
OIT:	150min	Elongation At Break:	6%-15%

High Strength Earth Reinforcement Welded Geocell 200mm Height HDPE ESCR OIT Green

GEOMAX INTRODUCTION

GeoMax® Geocells are strong, 3D honeycomb structures made of tough, high-density polyethylene (HDPE) sheets that are welded together using ultrasound.

These cells can be filled with sand, soil, or other materials from the area, making them a useful and affordable solution for many geotechnical projects.

This new system offers great value for the price. It can be used for many different things, like driveways, highways, railroads, landscaping, landfills, parking lots, and pipelines. The system saves a lot of time and labor by reducing project costs, reducing environmental impact, and making installation easier.

GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

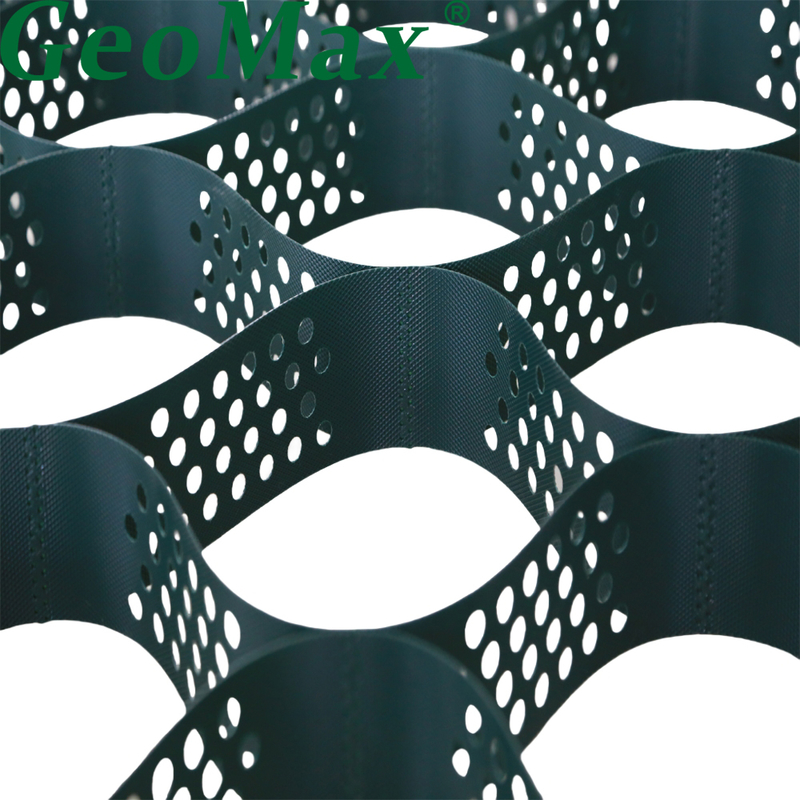

GEOMAX DETAILED PHOTOS

High Strength Earth Reinforcement Welded Geocell 200mm Height HDPE ESCR OIT Green 0

High Strength Earth Reinforcement Welded Geocell 200mm Height HDPE ESCR OIT Green 1

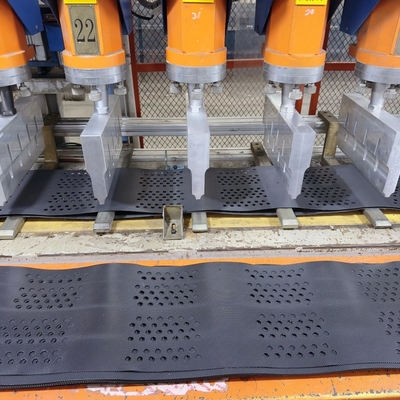

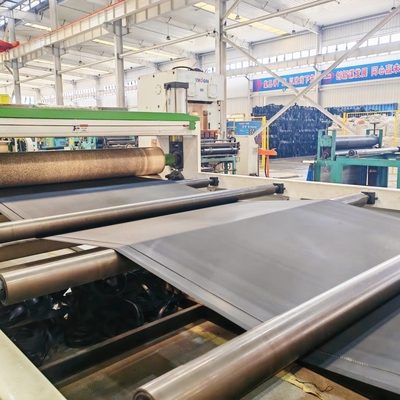

PRODUCTION LINE

GEOCELL INVENTION AND TESTING

GEOCELL PRODUCT AREA

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

High Strength Earth Reinforcement Welded Geocell 200mm Height HDPE ESCR OIT Green 6

FAQ:

Q: Does the product have a warranty? How does after-sales service work during the warranty period?
A: A 10-year warranty is offered. For damage due to material defects within the warranty period, free replacement is provided. The after-sales team responds within 24 hours and provides solutions within 48 hours.

Q: How to prevent infill loss?
A:Top Layer Geotextile: Prevents washout.

Use Cohesive Soil-Crushed Stone Mix.

Q: In which specific projects is Geocell suitable?
A: Widely used in road subbases, parking lots, riverbank revetments, golf courses, airport runway foundations, mine storage areas, etc.—especially for projects requiring fast construction or high environmental standards.

Q: What are the advantages of Geocell's honeycomb structure design?
A: The honeycomb structure distributes load pressure, reducing material usage by over 50% compared to traditional materials (e.g., concrete). It also enhances foundation stability and deformation resistance, making it ideal for soft soil reinforcement.

Q: How does Geocell perform in terms of UV resistance?
A: The HDPE material is added with UV-resistant additives, effectively preventing material aging caused by long-term sunlight. Its service life is not affected by outdoor lighting.

Q: Will Geocell deform in low or high temperatures?
A: HDPE has a temperature resistance range of -70°C to +110°C, maintaining structural stability in extreme temperatures. It is suitable for cold regions or high-temperature industrial scenarios.

Q: Where can Geocells be used?
A:Roads/Railways: Load distribution over weak subgrades.

Slopes: Erosion control and vegetation support.

Temporary Access Roads: Rapid deployment on soft ground.

Retaining Walls: Cost-effective alternative to gabions.

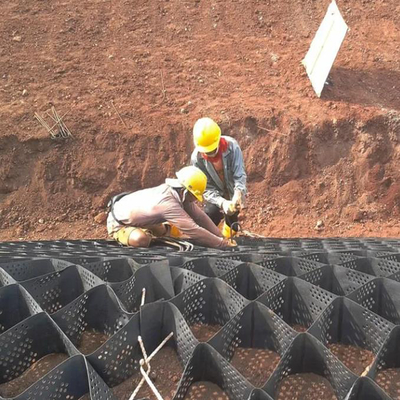

Q: How to handle slopes or irregular terrain when laying Geocell?
A: Geocell’s flexible design can adapt to slope gradients from 1:1 to 1:3. After fixing with anchors or soil nails, it effectively prevents soil landslides.
