GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading

GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading
GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading
GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading

Large Image :  GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM150-300
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading

Description
Material: 100% HDPE Plastic Thickness: 1.2-1.5mm
Surface: Smooth Or Textured Surface Tensile Strength: 25kN/m
Standard: ASTM; GB Standard； Peel Strength: 14.2 KN/m
Height: 150mm Color: Black;Yellow;Green
Welding Distance: 300mm Density: 0.950 G/cm3
Certificate: CE;ISO;ASTM
Highlight:

HDPE geocell for soil improvement

,

geocell drainage load spreading

,

330 HDPE geocell with warranty

GM150 254 Cellular HDPE System For Load Transfer Slope Reinforcement Ground Stabilization



GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax provides high-performance HDPE geocell and geosynthetic solutions for soil stabilization and ground reinforcement, engineered to deliver exceptional durability alongside advanced green design and sustainable performance.

Tuned for optimal load distribution, robust slope stability and reliable erosion control, our products are the go-to choice for urban/rural roads, highway subgrades, mountain slopes, river/coastal embankments, landfill foundations, retaining walls, ecological restoration and sponge city projects.

Crafted from premium HDPE and subjected to stringent quality control, our geocells stand up to extreme temperatures, UV degradation, corrosion and freeze-thaw cycles, boasting long service life, deformation resistance and minimal maintenance for enduring structural performance. Rooted in eco-conscious engineering, our geocells pair structural confinement with locally sourced natural fill—sand, gravel, native soil—minimizing carbon footprints, cutting reliance on energy-intensive building materials and reducing construction waste. This design aligns with circular construction principles, curtails resource consumption and delivers a cost-effective solution that upholds environmental stewardship and meets the strictest eco-friendly infrastructure standards.



SPECIFICATIONS


Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

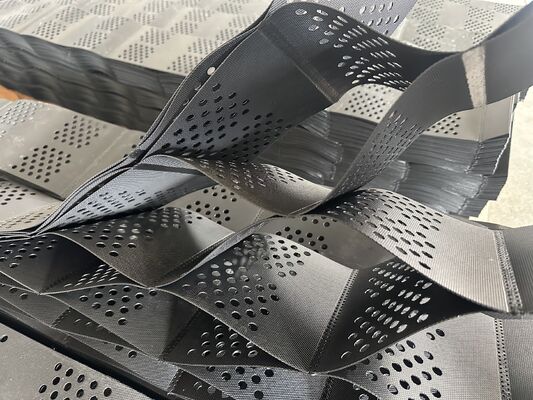

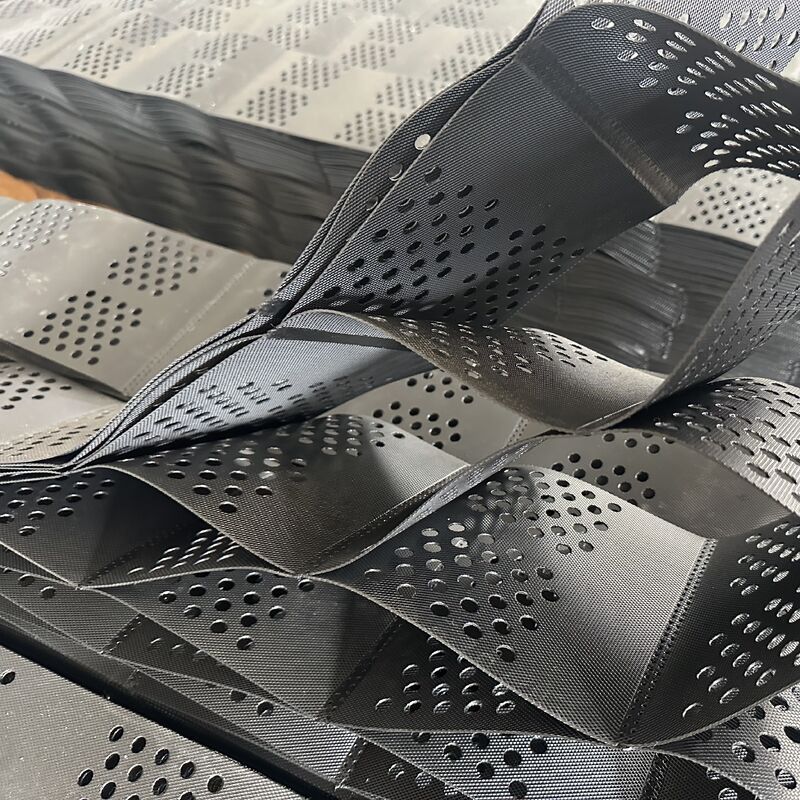

DETAILED PHOTOS

GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 0 GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 1

GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 2 GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 3

APPLICATIONS

GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 4

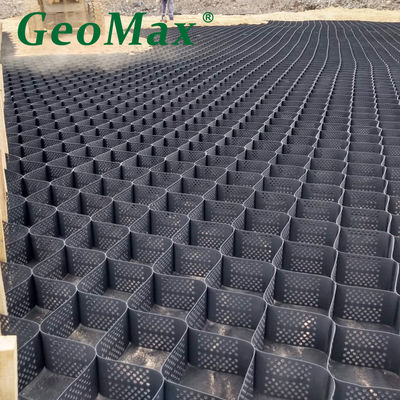

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 5

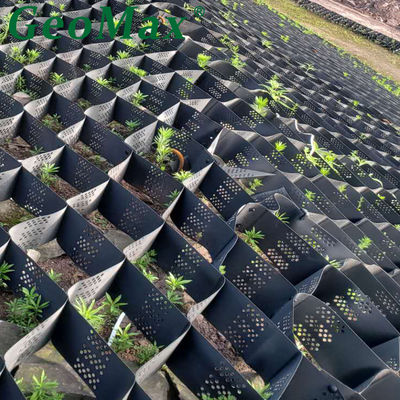

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

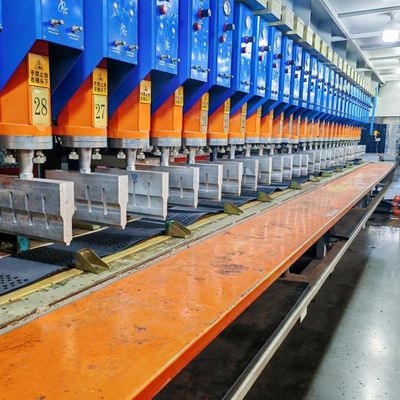

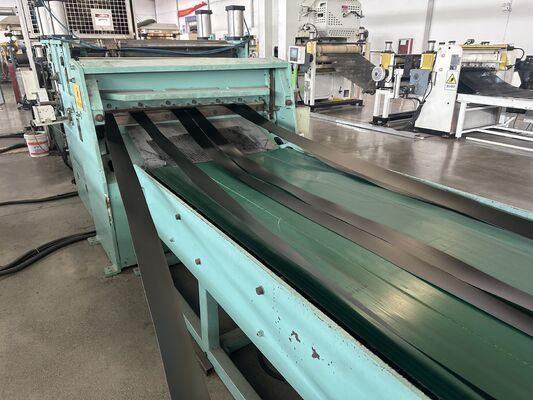

PRODUCTION LINE

GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 8

INVENTION AND TESTING

GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 9



PRODUCT AREA

GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 10

FAQ:

Can geocells be used for embankment reinforcement?

Yes. Geocells are effective for reinforcing embankments and improving slope stability.

What is the difference between geocell panels and rolls?

Geocells are supplied as collapsible panels, not continuous rolls, to allow easy expansion on site.

How does infill compaction affect geocell performance?

Proper compaction improves confinement efficiency and ensures optimal load transfer.

Can geocells help control frost heave?

Yes. By stabilizing infill materials, geocells help reduce frost-related deformation in cold regions.

Are geocells suitable for heavy industrial yards?

Yes. They are widely used in container yards, logistics centers, and industrial platforms.

GM100 330 HDPE Geocell For Soft Soil Improvement Drainage Balance Load Spreading 11
