200mm Height 1.65mm Thickness HDPE Geocell for Canal Lining & Irrigation Channel Protection

Large Image : 200mm Height 1.65mm Thickness HDPE Geocell for Canal Lining & Irrigation Channel Protection

Product Details:

Place of Origin:	ANHUI Province CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM200-356

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

200mm Height 1.65mm Thickness HDPE Geocell for Canal Lining & Irrigation Channel Protection

Description

Material:	100% Virgin High Density Polyethylene	Thickness:	1.65mm
HDPE Geocell Standard:	ASTM; GB Standard	HDPE Geocell Height:	200mm
Geocell Surface:	Textured&Non Perforated	Welded Distance:	356mm
HDPE Geocell Density:	0.950 G/cm3	HDPE Geocell Carbon Black:	1.5%
HDPE Peeling Strength:	10-14.2kN/m	Geocell Tensile Strength:	25kN/m
HDPE Geocell Our Minimum Quantity:	3000m2	Carbon Black:	1.5%
Highlight:	HDPE geocell for canal lining , 200mm height geocell for irrigation , 1.65mm thickness HDPE geocell

200mm Height 1.65mm Thickness HDPE Geocell for Canal Lining & Irrigation Channel Protection

HDPE GEOCELL PRODUCT INTRODUCTION

GeoMax® is a globally recognised innovator in the field of geotechnical engineering, with a proven track record of over two decades in the development of cell-based restraint systems. The company holds over 100 patents for its technological innovations, specialising in ground stabilisation, erosion control, and soil reinforcement.

The geocells have been engineered to exhibit durability, thereby ensuring superior strength, flexibility, and long-term performance. This renders them well-suited to meet the demands of modern infrastructure and environmental challenges. All products are ISO- and CE-certified, manufactured according to rigorous quality standards, and designed for global compliance and reliability.

GEOMAX SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

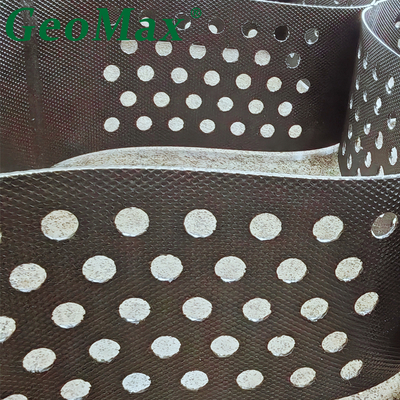

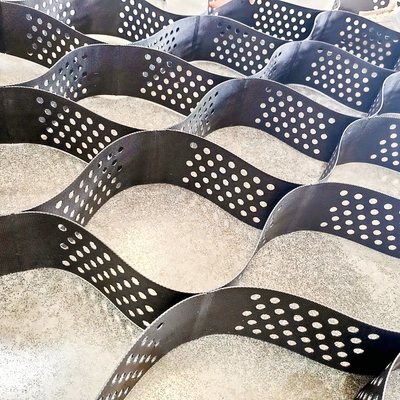

GEOMAX DETAILED PHOTOS

200mm Height 1.65mm Thickness HDPE Geocell for Canal Lining & Irrigation Channel Protection 0

200mm Height 1.65mm Thickness HDPE Geocell for Canal Lining & Irrigation Channel Protection 2

GEOCELL APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

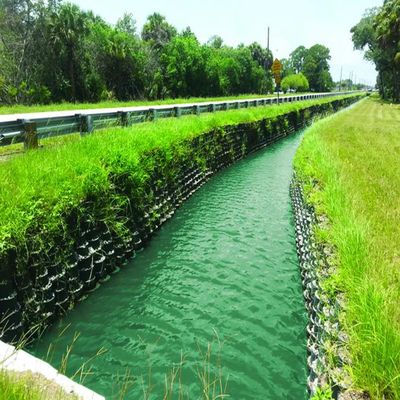

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

GEOCELL PRODUCTION LINE

GEOMAX INVENTION AND TESTING

GEOMAX PRODUCT AREA

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

200mm Height 1.65mm Thickness HDPE Geocell for Canal Lining & Irrigation Channel Protection 12

FAQ:

Q: How durable is Geocell?

A: Under normal circumstances, Geocell manufactured with high - quality raw materials and advanced production processes can have a service life of several decades under appropriate application scenarios and maintenance conditions. For example, in highway subgrade projects, it can serve stably for more than 20 years.

Q: What are the requirements for filling materials in Geocell?

A: The filling materials should have certain strength and gradation. For example, graded sand, gravel, crushed stones, etc. can be used for road subgrades; for ecological slope protection, soil suitable for vegetation growth mixed with a certain proportion of organic fertilizers and water - retaining agents, etc. can be used. The particle size should generally not be too large or too small to ensure the filling effect and the synergistic effect with the Geocell structure.

Q: What are the size specifications of Geocell?

A: The size specifications are diverse. The common cell heights are 50mm, 75mm, 100mm, etc. The side lengths of the cells are generally between 200mm and 500mm. The unfolded width is usually 2m - 4m, and the length can be customized according to requirements, such as 10m, 20m, etc.
