High Strength with GeoMax 100mm Height 330mm Welded Space HDPE Geocell for Ground Stabilization and Erosion Control

Large Image : High Strength with GeoMax 100mm Height 330mm Welded Space HDPE Geocell for Ground Stabilization and Erosion Control

Product Details:

Place of Origin:	ANHUI Province CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM100-330

Payment & Shipping Terms:

Minimum Order Quantity:	4000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

High Strength with GeoMax 100mm Height 330mm Welded Space HDPE Geocell for Ground Stabilization and Erosion Control

Description

Product Material:	HDPE	Product Thickness:	1.5mm
Geocell Standard:	ASTM Standard	Geocell Height:	100mm
Geocell Surface:	Non Perforated	Welded Distance:	330mm
HDPE Geocell Density:	0.950 G/cm3	HDPE Geocell Carbon Black:	1.5%
HDPE Peeling Strength:	10-14.2kN/m	HDPE Geocell Tensile Strength:	25kN/m
Geocell Minimum Quantity:	4000m2

HDPE GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a high-performance, three-dimensional cellular structure composed of
High-density polyethylene (HDPE) sheets, fortified with reinforcements, undergo ultrasonic welding to create a robust mesh structure. These cells can be filled with sand, soil, or locally sourced materials, providing a versatile and cost-effective solution across a wide range of geotechnical applications.

This innovative system provides value-engineered solutions for a broad spectrum of infrastructure.
The following applications are to be considered: driveways, highways, railways, landscapes, landfills, parking lots, and
The subject of this investigation is pipelines. The objective is to reduce overall project costs, minimize environmental impact, and streamline processes.
The installation process has been shown to result in substantial savings, both in terms of time and labor.

GEOMAX SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

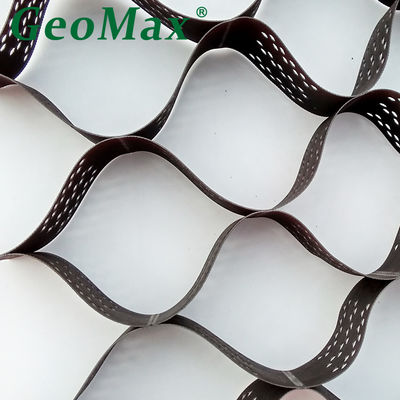

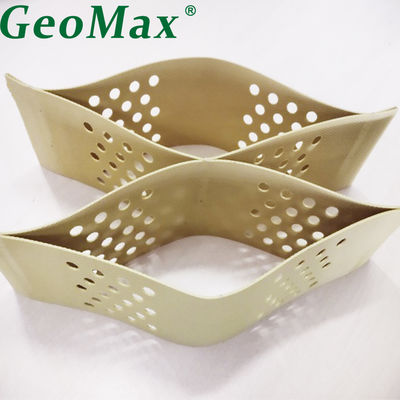

GEOMAX DETAILED PHOTOS

High Strength with GeoMax 100mm Height 330mm Welded Space HDPE Geocell for Ground Stabilization and Erosion Control 0

High Strength with GeoMax 100mm Height 330mm Welded Space HDPE Geocell for Ground Stabilization and Erosion Control 2

GEOCELL APPLICATIONS

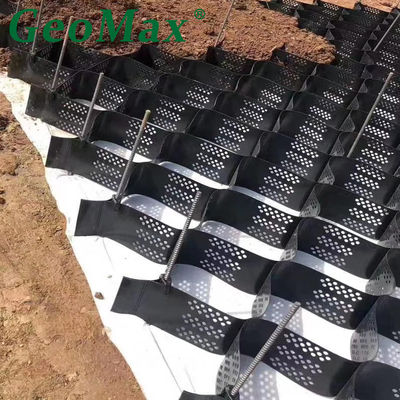

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

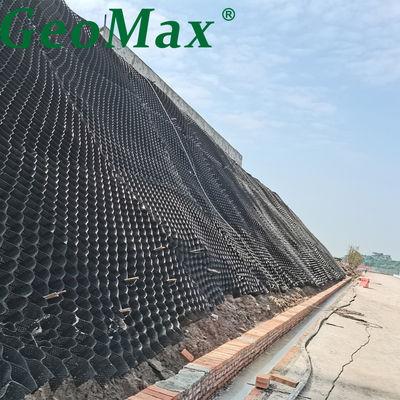

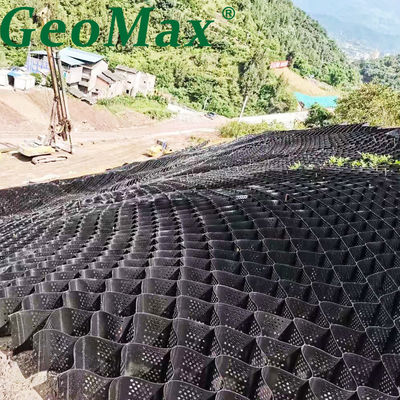

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

GEOCELL PRODUCTION LINE

GEOMAX INVENTION AND TESTING

GEOMAX PRODUCT AREA

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

High Strength with GeoMax 100mm Height 330mm Welded Space HDPE Geocell for Ground Stabilization and Erosion Control 12

FAQ:

Q: In which specific projects is Geocell suitable?
A: Widely used in road subbases, parking lots, riverbank revetments, golf courses, airport runway foundations, mine storage areas, etc.—especially for projects requiring fast construction or high environmental standards.

Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.

Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements.

Q: Will Geocell deform in low or high temperatures?
A: HDPE has a temperature resistance range of -70°C to +110°C, maintaining structural stability in extreme temperatures. It is suitable for cold regions or high-temperature industrial scenarios.

Q: Where can Geocells be used?

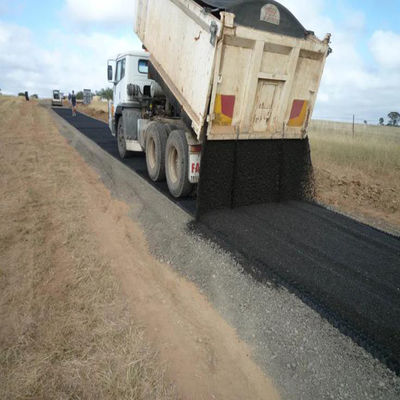

A:Roads/Railways: Load distribution over weak subgrades.

Slopes: Erosion control and vegetation support.

Temporary Access Roads: Rapid deployment on soft ground.

Retaining Walls: Cost-effective alternative to gabions.

Q: How does Geocell integrate with vegetation in ecological slope protection projects?
A: After filling Geocell with soil, it can be sown with grass seeds or planted with shrubs. The honeycomb structure stabilizes soil to prevent erosion while providing space for root growth, achieving dual effects of ecological greening and slope reinforcement

Q: Are Geocells eco-friendly?
A:Recyclable: HDPE can be repurposed.

Vegetation-Compatible: Some designs allow root penetration.
