Black And Green HDPE Geocell Retaining Wall OIT ESCR 100mm Height 356mm Welded Space High Quality ASTM Standard

Large Image : Black And Green HDPE Geocell Retaining Wall OIT ESCR 100mm Height 356mm Welded Space High Quality ASTM Standard

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE And ISO9001-2015
Model Number:	GM100-356

Payment & Shipping Terms:

Minimum Order Quantity:	3500 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

Black And Green HDPE Geocell Retaining Wall OIT ESCR 100mm Height 356mm Welded Space High Quality ASTM Standard

Description

Material:	HDPE Plastic	Thickness:	1.2-1.5mm
Standard:	ASTM / GB Standard	Cell Height:	100mm
Cell Size:	356mm	Surface Tone:	Green; Yellow; Black
Welding Distance:	356mm	Surface:	Smooth & Textured
Density:	0.950 G/cm3	OIT:	150min
ESCR:	4999 Hours

Black And Green HDPE Geocell Retaining Wall OIT ESCR 100mm Height 356mm Welded Space High Quality ASTM Standard

GEOCELL PRODUCT INTRODUCTION

GeoMax® leads the industry in geotechnical engineering, with unparalleled expertise in cellular confinement systems spanning over 20 years. Our 100+ patented technologies guarantee advanced solutions for ground stabilization, erosion control, and soil reinforcement.

Our geocells are engineered for unparalleled strength, flexibility, and long-term performance, meeting the demands of modern infrastructure and environmental challenges with ease. All products are ISO and CE certified and manufactured under rigorous quality standards to ensure global compliance and reliability.

GeoMax® delivers fully customized solutions tailored to project-specific needs. We are committed to engineering excellence and client success. We build smarter, stronger, and more sustainable ground systems around the world.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

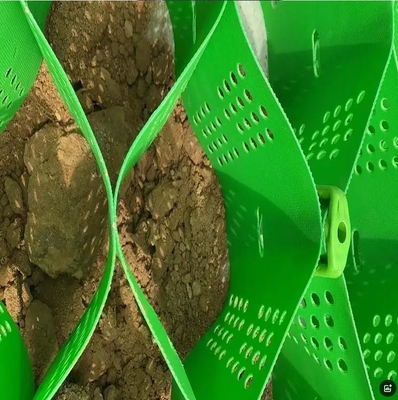

DETAILED PHOTOS

Black And Green HDPE Geocell Retaining Wall OIT ESCR 100mm Height 356mm Welded Space High Quality ASTM Standard 0

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

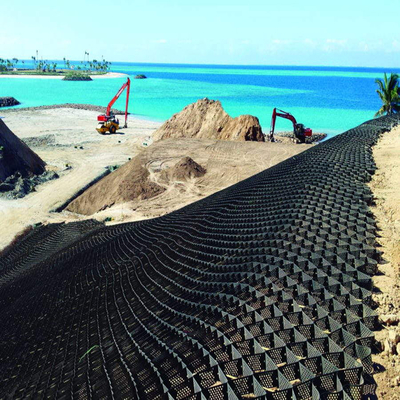

SLOPE PROTECTION

Geomax® (Hdpe Geocell) is an excellent option for slope protection or erosion control. It has been observed to have both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax® (HDPE Geocell) has been found to contribute to stability and protection of channels.
It is exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

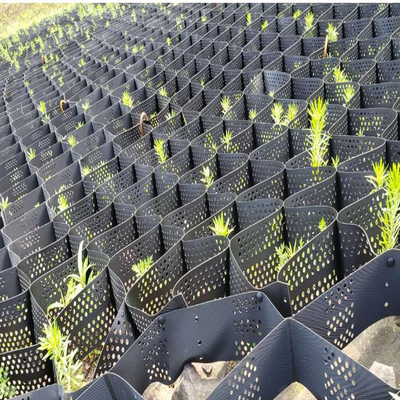

RETAINING WALLS

Geomax® (HDPE Geocell) has been found to be highly permeable, which could be beneficial as it allows rainwater to infiltrate the ground. It has also been observed to act as a number of planting pots, with the potential to help minimize runoff.

PRODUCTION LINE

PRODUCT AREA

CERTIFICATES

PHOTO OF THE EXHIBITION

Black And Green HDPE Geocell Retaining Wall OIT ESCR 100mm Height 356mm Welded Space High Quality ASTM Standard 9
