150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

Name: 150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded
Brand: Anhui Hechuang New Synthetic Materials Co., Ltd
SKU: GM150-330
Price: 9.50 USD
Availability: InStock

All Products

HDPE Geocell
(285)

Slope Protection Geocell
(82)

Geocell For Road Construction
(85)

Erosion Control Geocell
(27)

Geocell Ground Grid
(6)

Geo Cell Grid
(7)

Geobin Compost Bin
(10)

HDPE Liner Sheet
(11)

Soil Reinforcement Geogrid
(20)

HDPE Geomembrane Sheet
(11)

Geotextile Fabric
(18)

Certification

Customer Reviews

HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

Large Image : 150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM150-330

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

Description

Material:	100% HDPE Plastic	Cell Thickness:	1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard	Peel Strength:	14.2 KN/m
Height:	150mm	Color:	Black
Welding Distance:	330mm	Density:	0.950 G/cm3
HPOIT:	400Min

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a high-performance, three-dimensional cellular structure made of

reinforced high-density polyethylene (HDPE) sheets that are ultrasonically welded together to form a robust mesh.

The cells can be filled with sand, soil, or locally sourced materials, making it a versatile and cost-effective solution for a wide range of geotechnical applications.

effective solution for a variety of geotechnical applications.

This innovative system offers value-engineered solutions for various infrastructure projects, including driveways, highways, railways, landscapes, landfills, parking lots, and more.

applications, including driveways, highways, railways, landscapes, landfills, and parking lots.

By reducing overall project costs, minimizing environmental impact, and streamlining pipelines. By reducing project costs, minimizing environmental impact, and streamlining

It delivers significant savings in both time and labor by reducing overall project costs and minimizing environmental impact.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

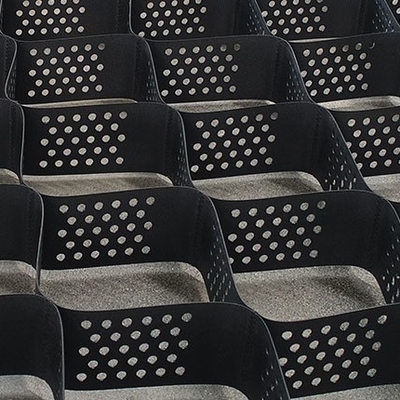

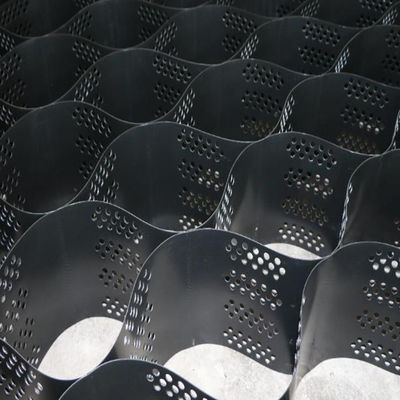

DETAILED PHOTOS

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded 0

150mm UV-Resistant HDPE Geocell Landfill Erosion Control High Strength Black 14.2kN/m Welded 2

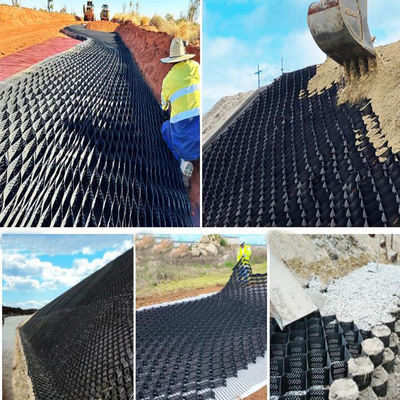

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

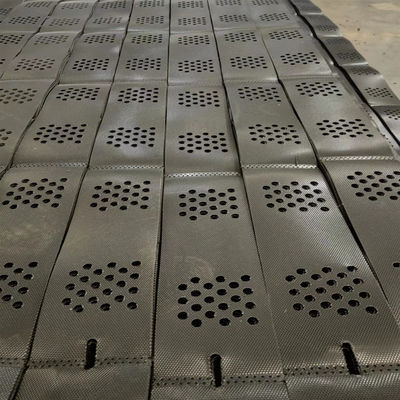

PRODUCTION LINE

Welding space: 356mm
